Print Head/Consumables

Number of Nozzles

Total 1,472 nozzles

Ink Bottles (Type/Colours)

GI-790
(Pigment Ink/Black),
(Dye-Based Ink/Cyan, Magenta, Yellow)

Maximum Print Resolution

4,800 (horizontal)*1 x 1,200 (vertical) dpi

Print Speed*2 (Approx.)

Click Here for summary report
Click Here for Document Print and Copy Speed Measurement Conditions

Document (ESAT/Simplex)

8.8 / 5 ipm (mono/colour)

Document (FPOT Ready/Simplex)

11 / 17 sec (mono/colour)

Photo (4 x 6") (PP-201/Borderless)

60 sec

Print Width

Bordered: Up to 203.2 mm (8")
Borderless: Up to 216 mm (8.5")

Recommended Printing Area

Top margin: 31.2 mm
Bottom margin: 32.5 mm

Print Margin

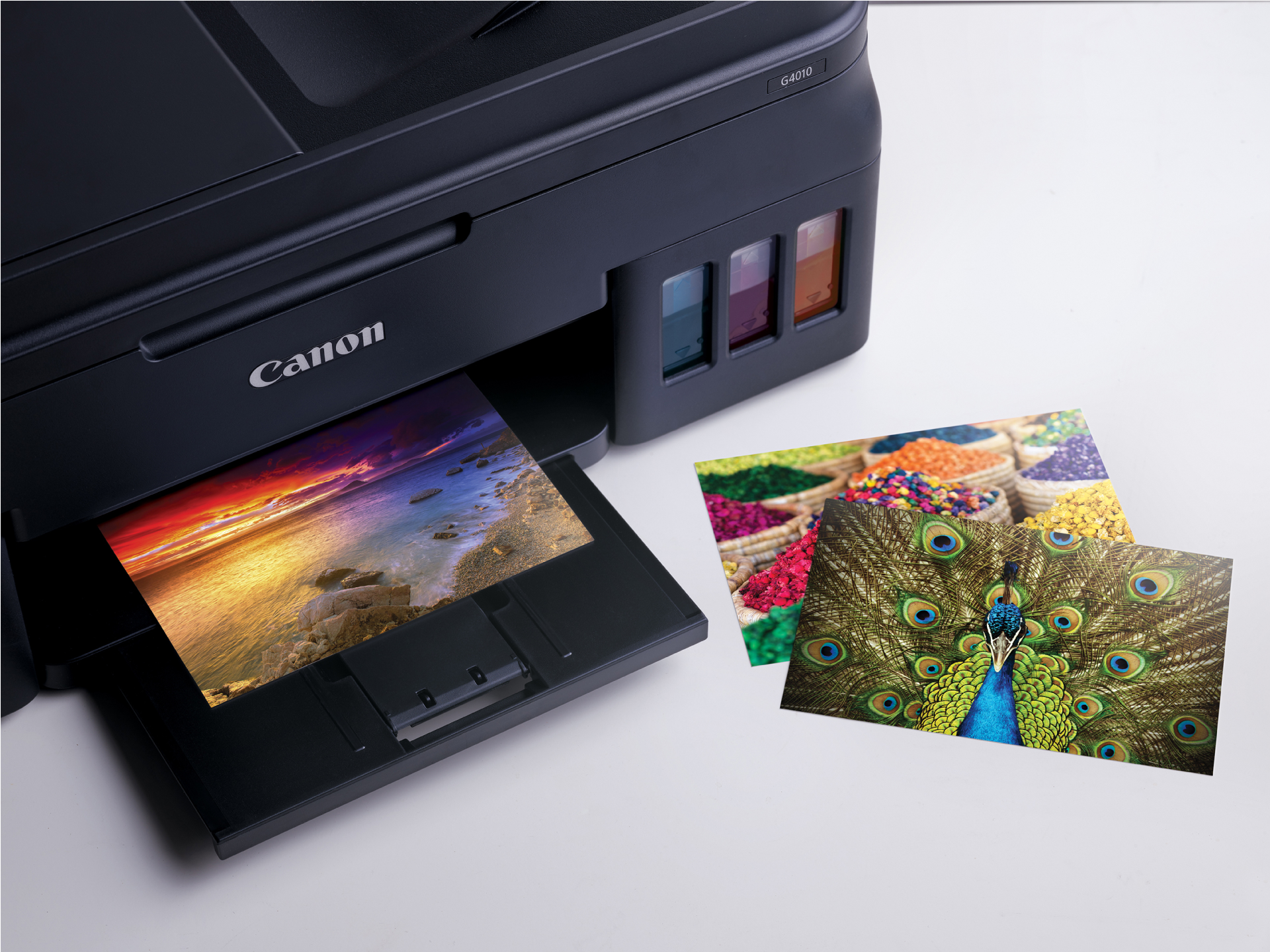

Borderless Printing*3

A4, Letter, 4x6", 5 x 7", 8 x 10", Square (127 x 127mm), Business Card:
Top/Bottom/Left/Right margin: 0 mm

Bordered Printing

LTR, LGL:
Top margin: 3mm, Bottom margin: 5 mm
Left: 6.4 mm, Right: 6.3mm

Others:
Top margin: 3mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm

Supported Media

Rear Tray

Plain Paper (64 - 105 g/m²)
High Resolution Paper (HR-101N)
Photo Paper Plus Glossy II (PP-201, PP-208)
Photo Paper Plus Semi-Gloss (SG-201)
Matte Photo Paper (MP-101)
Envelope

Paper Size

Rear Tray

A4, A5, B5, LTR, LGL, Envelope (COM10, DL), 4 x 6", 5 x 7", 8 x 10", Square (127 x 127mm), Business Card

[Custom Size]
Width: 55 - 215.9 mm
Length: 89 - 676 mm

*F4 is possible via custom size settings.

Borderless Printing*3

A4, Letter, 4x6", 5 x 7", 8 x 10", Square (127 x 127mm), Business Card

Maximum Capacity

Rear Tray

Plain Paper (A4, A5, B5, LTR, 64 g/m²): 100
High Resolution Paper (HR,101N): 80
Photo Paper Plus Glossy II (PP-201, PP-208, 4 x 6"): 20
Photo Paper Plus Semi-Gloss (SG-201, 4 x 6"): 10
Matte Photo Paper (MP-101, 4 x 6"): 20
Envelope (COM10, DL): 10

Paper Weight

Rear Tray

Plain Paper: 64 - 105 g/m²
Canon Paper: Approx. 275 g/m² (max.)
(Photo Paper Plus Glossy II, PP-201)

OS System Compatibility*4

Windows 10 / 8.1 / 7 SP1
macOS is not supported

Operation Panel

Display

2-Line LCD

Interface

USB 2.0

Operating Environment*5

Temperature

5 - 35°C

Humidity

10 - 90% RH (no dew condensation)

Recommended Environment*6

Temperature

15 - 30°C

Humidity

10 - 80% RH (no dew condensation)

Storage Environment

Temperature

0 - 40°C

Humidity

5 - 95% RH (no dew condensation)

Quiet Mode

Available

Acoustic Noise*7

Plain Paper (A4, Mono)

54.5 dB(A)

Power Requirements

AC 100 - 240 V, 50/60 Hz

Power Consumption (Approx.)

OFF

0.2 W

Standby

0.6 W

Operation*8

11 W

Dimensions (W x D x H)

Factory Configuration

445 x 330 x 135 mm

Output Trays Extended

445 x 529 x 253 mm

Weight

4.8 kg

Plain Paper
Click Herer here for more information

A4 Colour Documents*10:
GI-790 PGBK: 6,000
GI-790 C, M, Y: 7,000

Photo Paper (PP-201)
Click here for more information

4 x 6" Photos:
GI-790 PGBK: NA*11
GI-790 C, M, Y: 2,000
